Corridor Ceiling System
Linear Type - CX

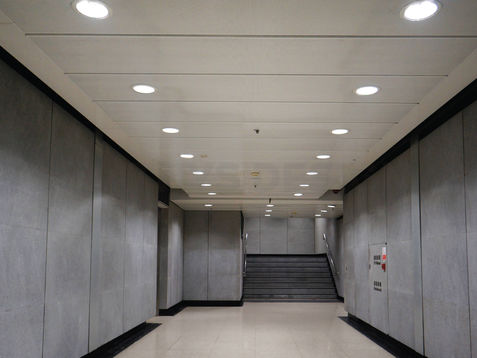

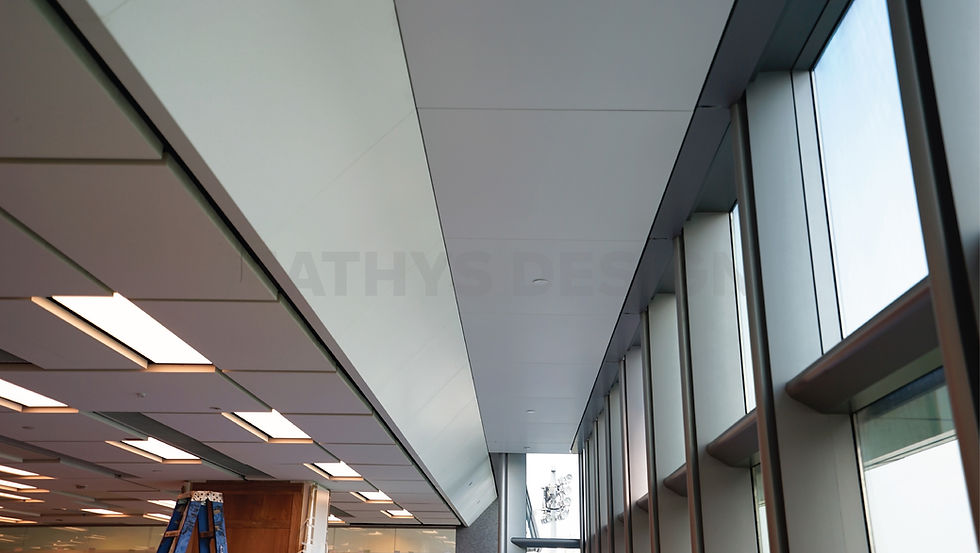

The corridor ceiling system is designed specifically for narrow or transitional spaces, providing a clean and streamlined appearance. Its modular panels allow for quick and convenient installation, as well as easy access for maintenance. The system efficiently conceals utilities while ensuring a cohesive look throughout corridor areas.
Std. Module Size (mm) | Panel width 300, 400, 500, 600 mm Panel length : 1200, 1600, 2000, 2400, 3000 mm Custom size upon request |
Mini. System Thickness | 100mm |
Weight | Approx. 2 - 3 kg/m2 (ALU panel) Approx. 8 -10 kg/m2 (SS panel) Approx. 14 -16 kg/m2 (CU panel) |
Ceiling Grid Type | CX200: Lay on angle CX210, CX212: Z profile CX214: C channel CX220: Clamping rail |
Accessibility | All demountable, tools requirement subject to model number. |
Specification & Options
Material choices
Finish
Polyester Powder coating (PPC)
Pre-painted coil coating
Fluorocarbon coating (PVDF)
Metallic effect PVDF coating
Timber effect PPC coating
PVC film heat lamination
Anodic Anodising Aluminium
Mirror polished (SS)
Physical Vapour Deposition (PVD) SS
Hairline/Satin texture on bare metal
Digital Graphic PPC
Standard color option: RAL K7 series.
Custom color options: RAL/PANTONE/ NCS.
Timber effect on PPC: Standard and custom options available.
PVC film lamination: Standard collections available.
Digital print: >300 ppi image from buyer.
Perforation choice
System Details
Download Model Data Sheet
Model Number | System Name | Resources |
CX200 | Corridor Lay-on | |
CX210 | Corridor Hook-on | |

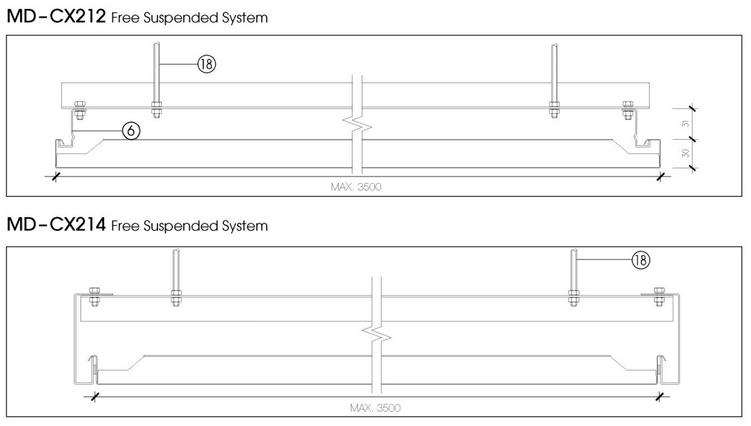

CX212 | Corridor Open-joint | |
CX214 | Corridor Raft | |
CX220 | Corridor Clip-in |
