Hook-On Ceiling System
Conceal Type - HS
The hook-on Ceiling System offers a concealed design with modular square or rectangular panels available in standard sizes, ensuring flexibility for various architectural layouts. Made from galvanized mild steel or aluminum, these panels come with an electrostatic powder-coated finish in RAL 9010 white or any other standard RAL color for a sleek appearance. Offering both non-perforated and perforated options with acoustic fleece, the system provides tailored acoustic solutions with different perforation patterns, combining aesthetic appeal and superior performance.
Std. Module Size (mm) | HS01: 600x600 1200x600 1200x300 HS02: 600 x 600 1200 x 600, 1200 x 1200 1500 x 800 2400 x 1200 HS03: 1500 x 800 1200 x 600, 1200 x 1200 2400 x 1200 3000 x 1500 Custom size upon request |
Mini. System Thickness | HS01: 88mm HS02: 100mm HS03: 100mm |
Weight | HS01: Approx. 2 - 3 kg/m2 (ALU panel) HS02, HS03: Approx. 2 - 3 kg/m2 (ALU panel) Approx. 8 -10 kg/m2 (SS panel) Approx. 14 -16 kg/m2 (CU panel) |
Ceiling Grid Type | HS01: H-Profile (T24) HS02: J-Bar HS03: J-Bar |
Accessibility | Downward demountable w/ tools |
Specification & Options
Material choices
Finish
Polyester Powder coating (PPC)
Pre-painted coil coating
Fluorocarbon coating (PVDF)
Metallic effect PVDF coating
Timber effect PPC coating
PVC film heat lamination
Anodic Anodising Aluminium
Mirror polished (SS)
Physical Vapour Deposition (PVD) SS
Hairline/Satin texture on bare metal
Digital Graphic PPC
Standard color option: RAL K7 series.
Custom color options: RAL/PANTONE/ NCS.
Timber effect on PPC: Standard and custom options available.
PVC film lamination: Standard collections available.
Digital print: >300 ppi image from buyer.
Perforation choice

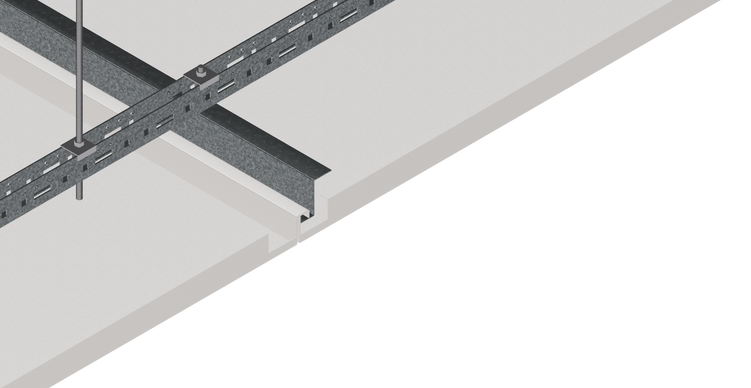

System Details
Download Model Data Sheet
Model Number | System Name | Resources |
HS01 | Hook-on Lite | |
HS02 | Hook-on | |
HS03 | Hook-on XL |
