Open Joint Ceiling System
Conceal Type - OS

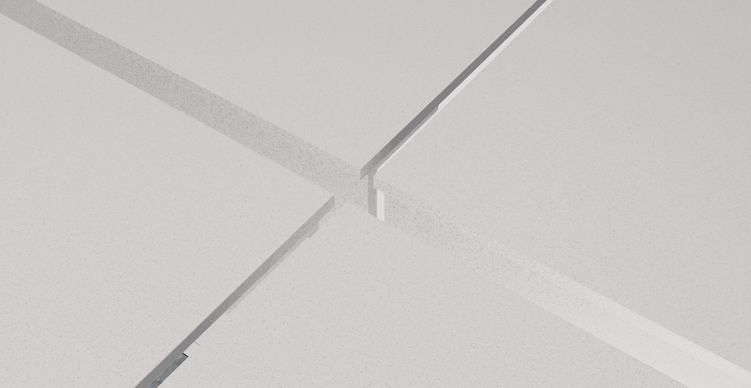

The open-joint system creates a sense of airiness, further emphasized by recessed grooves oriented in different directions. The floating effect of the ceiling panels gives the ceiling a distinct, clean appearance. The panels are easy to install and remove without the need for any tools.
Std. Module Size (mm) | 1500 x 800 1200 x 600, 1200 x 1200 2400 x 1200 3000 x 1500 Custom size upon request |
Mini. System Thickness | 120mm |
Weight | Approx. 2 - 3 kg/m2 (ALU panel) Approx. 8 -10 kg/m2 (SS panel) Approx. 14 -16 kg/m2 (CU panel) |
Ceiling Grid Type | OS Profile |
Accessibility | Downward demountable w/ tools |
Specification & Options
Material choices
Finish
Polyester Powder coating (PPC)
Pre-painted coil coating
Fluorocarbon coating (PVDF)
Metallic effect PVDF coating
Timber effect PPC coating
PVC film heat lamination
Anodic Anodising Aluminium
Mirror polished (SS)
Physical Vapour Deposition (PVD) SS
Hairline/Satin texture on bare metal
Digital Graphic PPC
Standard color option: RAL K7 series.
Custom color options: RAL/PANTONE/ NCS.
Timber effect on PPC: Standard and custom options available.
PVC film lamination: Standard collections available.
Digital print: >300 ppi image from buyer.
Perforation choice
System Details
Download Model Data Sheet
Model Number | System Name | Resources |
OS01 | Open-Joint | |
OS02 | Open-Joint XL |
