Tartan Grid System
Linear Type - TG

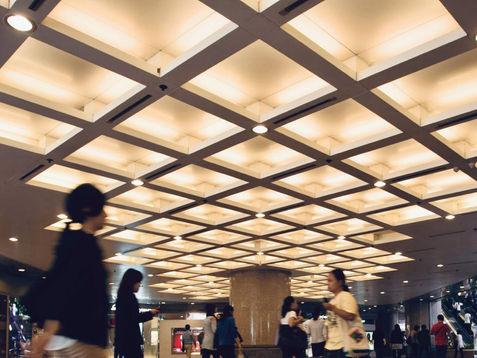

The tartan grid ceiling system offers an architectural solution that blends functionality with an intricate, decorative design. Ease of integration with lighting, ventilation, and audio systems ensures that the tartan grid ceiling is not only visually appealing but also highly functional.
Std. Module Size (mm) | TG335, TG345, TG355, TG365 Tartan grid width 50, 100, 150, 200, 300 mm Module : 1200x1200, 1500x1500, 1800x1800 mm TG335 Panel width 300, 400, 500, 600 mm Custom size upon request |
Mini. System Thickness | 100mm |
Weight | Approx. 2 - 3 kg/m2 (ALU panel) Approx. 8 -10 kg/m2 (SS panel) Approx. 14 -16 kg/m2 (CU panel) |
Ceiling Grid Type | Tartan Grid |
Accessibility | Downward demountable w/o tools |
Specification & Options
Material choices
Finish
Polyester Powder coating (PPC)
Pre-painted coil coating
Fluorocarbon coating (PVDF)
Metallic effect PVDF coating
Timber effect PPC coating
PVC film heat lamination
Anodic Anodising Aluminium
Mirror polished (SS)
Physical Vapour Deposition (PVD) SS
Hairline/Satin texture on bare metal
Digital Graphic PPC
Standard color option: RAL K7 series.
Custom color options: RAL/PANTONE/ NCS.
Timber effect on PPC: Standard and custom options available.
PVC film lamination: Standard collections available.
Digital print: >300 ppi image from buyer.
Perforation choice

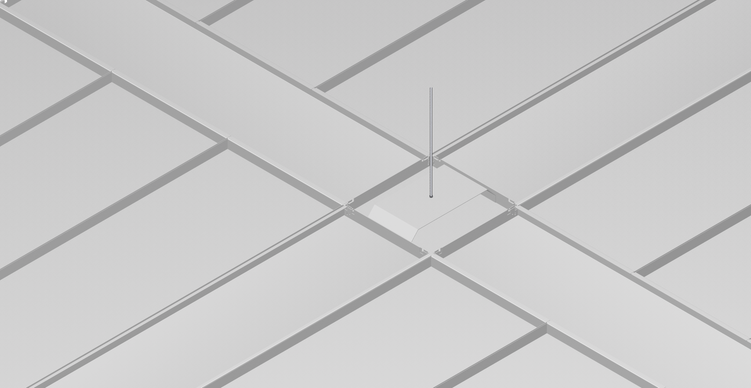

System Details
Download Model Data Sheet
Model Number | System Name | Resources |
TG335 | Tartan Grid Lay-on | |
TG345 | Tartan Grid XL | |
TG355 | Tartan Grid Hook-on | |
BS365 | Tartan Grid Freedom |
