Visible Grid Ceiling System
Expose Type - VG

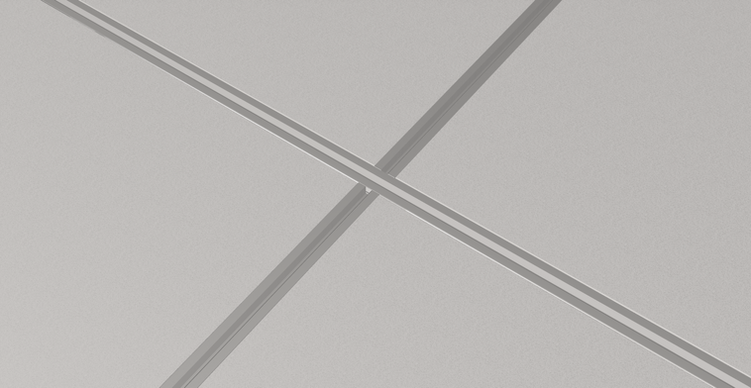

The visible grid system is the most straightforward metal ceiling design, facilitating easy coordination with electrical and mechanical services. This system features simple lay-on square or rectangular tiles on visible T-grids or box grids, making installation and maintenance manageable for technicians.
Std. Module Size (mm) | 300x300 600x600 1200x300 1200x600 *Special sizes are available upon request |
Mini. Systen Thickness | 38mm |
Weight | Approx. 1.5 - 2 kg/m2 (PET panel) Approx. 2 - 3 kg/m2 (ALU panel) Approx. 8 -10 kg/m2 (SS panel) Approx. 14 -16 kg/m2 (CU panel) |
Ceiling Grid Type | VG01 : T-grid (T15 or T24) VG02 : T-grid (T15 or T24) VG03 : Alu-grid (T15 drop 8 or 16mm) VG03-TT : Alu-grid (T15 drop 8 or 16mm) VG04 : Box-grid (T15 drop 8mm) |
Accessibility | Upward demountable w/o tools |
Specification & Options
Material choices
Finish
Polyester Powder coating (PPC)
Pre-painted coil coating
Fluorocarbon coating (PVDF)
Metallic effect PVDF coating
Timber effect PPC coating
PVC film heat lamination
Anodic Anodising Aluminium
Mirror polished (SS)
Physical Vapour Deposition (PVD) SS
Hairline/Satin texture on bare metal
Softfelt (PET)
Digital Graphic PPC
Standard color option: RAL K7 series.
Custom color options: RAL/PANTONE/ NCS.
Timber effect on PPC: Standard and custom options available.
PVC film lamination: Standard collections available.
Digital print: >300 ppi image from buyer.
Perforation choice
System Details
Download Model Data Sheet
Model Number | System Name | Resources |
VG01 | Exposed T-Grid Lay-on | |
VG02 | Exposed T-Grid Recess | |
VG03 | Exposed-Alu grid | |
VG03-TT | Tartan-Alu grid | |
VG04 | Exposed-Box grid |
